Petzl AM'D Pin-Lock Carabiner

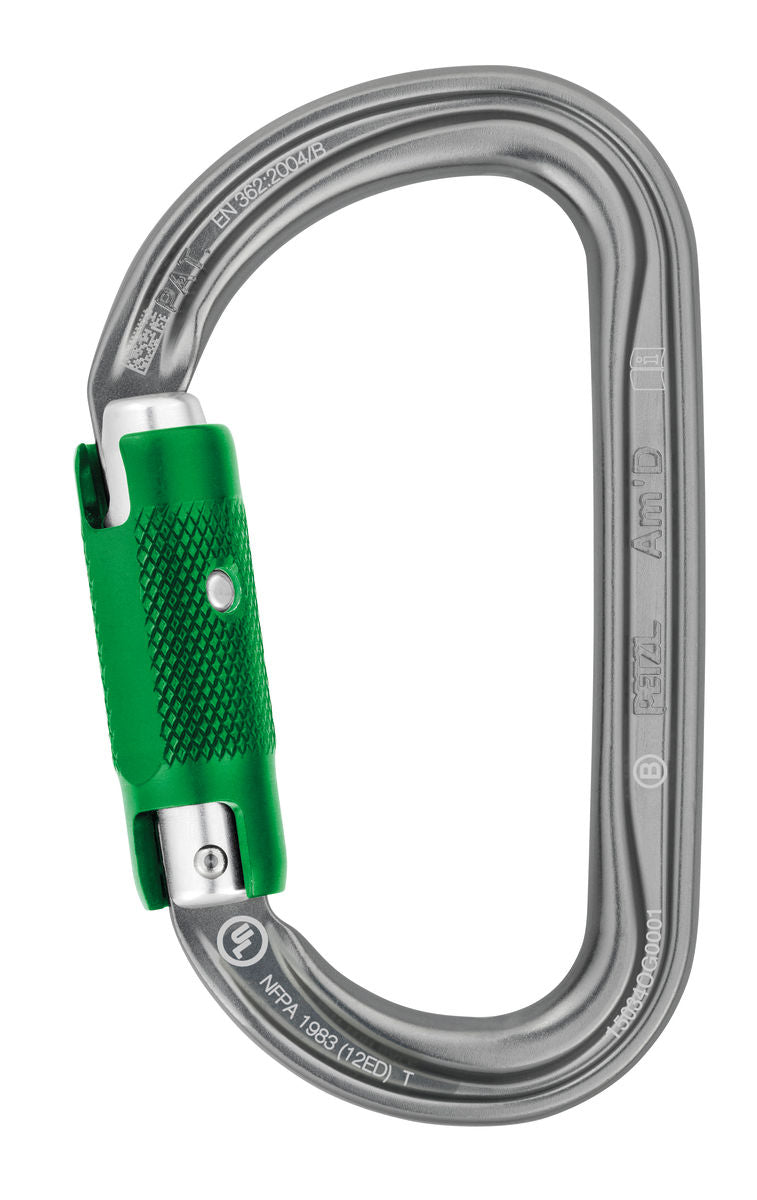

The Am'D PIN-LOCK asymmetrical aluminum carabiner is crafted specifically for group use, ensuring a secure connection through its PIN-LOCK system that only the operator can unlock with a dedicated tool. When attached to the CAPTIV bar, it aligns the carabiner along the major axis to minimize flipping and maintain seamless integration with the device. This design offers enhanced safety and reliability in group settings.

• Carabiner designed for use with groups:
  • to fasten a harness (in combination with the CAPTIV positioning bar)
  • to connect a trolley to a continuous lifeline
• Secures the connection of the user:
  • may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device
  • PIN-LOCK locking system is unlocked only with a special tool, limiting the risk of the user opening the carabiner
• Easy to use by the operator:
  • Keylock system to avoid any involuntary snagging of the carabiner

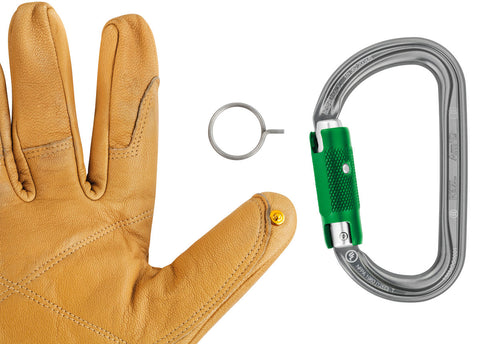

  • two unlocking tools: for repeated manipulations, the unlocking pin can be installed directly on a glove; for immediate and occasional use, the unlocking ring can be kept on a carabiner on the harness
  • H-profile protects markings from abrasion and ensures improved strength-to-weight ratio
• Gate opening: 0.98" (25mm)
• Major axis strength: 27kN (6070 lbs)
• Minor axis strength: 8kN (1798 lbs)
• Open gate strength: 7kN (1574 lbs)
• Certification(s): CE EN 362, CE EN 12275, EAC
